Coherent Optical IQ Receiver
コヒーレントIQレシーバ
製品概要

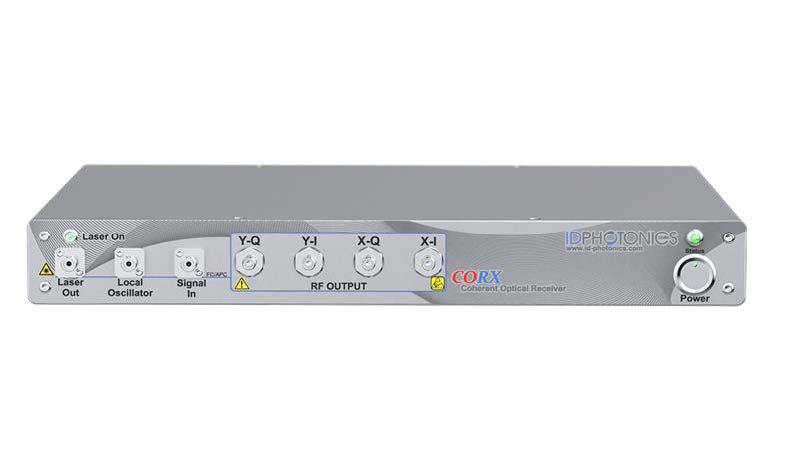

The CORX Coherent Optical Receiver is a turn-key instrument designed to interface with any real-time oscilloscope by providing 4 single-ended RF outputs. It allows the coherent detection of polarization-multiplexed optical signals in the C-Band by mixing the test signal with a built-in local laser oscillator.
特長
- E/Oバンド幅:
- 60GHz(Typ)
- 波長レンジ:
- 1528-1568nm
- 出力レンジ:
- 10～16dBm
- 線幅:
- 25kHz(Typ)
- E/O Bandwidth:
- 60GHz(Typ)
- Wavelength Range:
- 1528-1568nm
- Optical Output Power:
- 10～16dBm
- Line Width:
- 25kHz(Typ)
