- 中心波長: 1280/1310/1340nm(選択)
チューニングレンジ: ≧35nm
出力: ≧5mW
SMSR: >30dB
線幅: <50MHz
![1300nm(O-band)チューナブルレーザ 画像](https://i-wave.com/wp-content/uploads/5433-FP3013x.jpg)

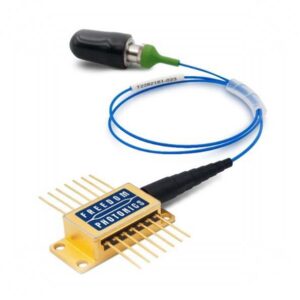

1300nm(O-band) Tunable Laser
1300nm(O-band)チューナブルレーザ
製品概要
This tunable laser consists of a monolithic Indium Phosphide chip that integrates a widely tunable laser with a semiconductor optical amplifier ( The laser is electronically tuned and can address any wavelength in a 35 nm band centered at 1280 1310 or 1340 nm.
特長
- CW: 1280/1310/1340nm(Select)
Tuning Range: ≧35nm
Output Power: ≧5mW
SMSR: >30dB
Laser Linewidth: <50MHz
