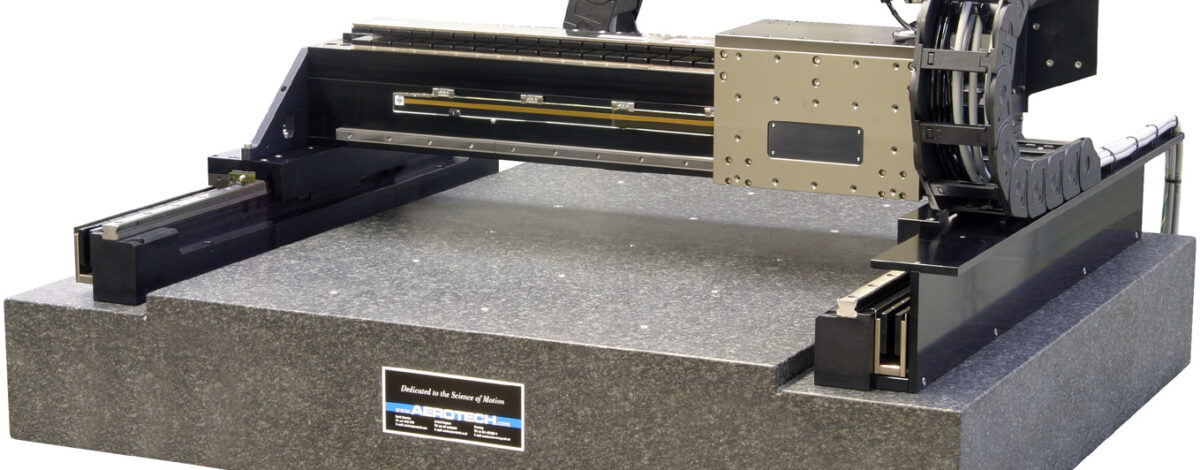

Direct-Drive Gantry System(1000x1000mm)
ダイレクトドライブガントリーシステム(1000x1000mm)
製品概要
The AGS10000 series of Cartesian gantry systems puts Aerotech’s core technologies and extensive manufacturing capability to work for you, providing outstanding performance and versatility in a wide range of automation platforms.
特長
- トータル移動量:
- 1000x1000mm
- 再現性:
- +/-2.0um
- 精度:
- +/-5.0um
- 移動スピード:
- 3mm/s(Max)
- 荷重容量:
- 25.0kg(Max)
- Total Travel:
- 1000x1000mm
- Repeatability:
- +/-2.0um
- Accuracy:
- +/-5.0um
- Travel Speed:
- 3mm/s(Max)
- Payload Capacity:
- 25.0kg(Max)
