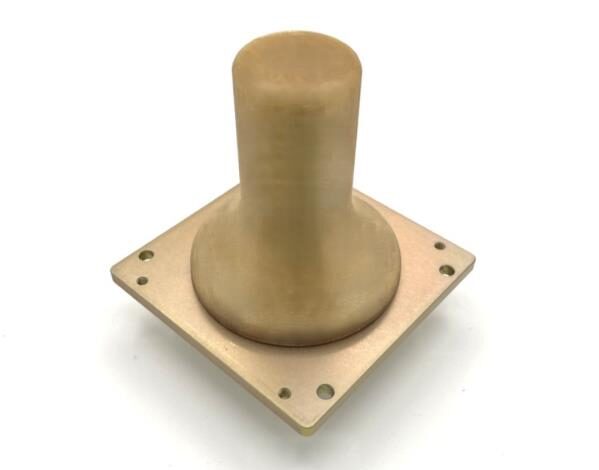

S-band RHCP Isoflux Antenna
S-band RHCP Isoflux Antenna
製品概要
PW2022-103 is a high-performance wideband antenna engineered for TT&C applications in lunar missions. It delivers excellent circular polarization performance across the entire frequency band, with an isoflux radiation pattern optimized for lunar applications where enhanced low-elevation gain is critical.
特長
- Operating Frequency:
- 2000-2300MHz
- Peak Gain(2000-2120MHz):
- 0.5dBic(Typ)
- Half Power Beam Width(2000-2120MHz):
- 200deg(Typ)
- Power Handling:
- 20W(Min)
